Introduce

A Brushless DC (BLDC) motor is a Permanent Magnet Synchronous Motor with unique back EMF waveform that allows them to behave similarly to a brushed DC motor. Some confusion can arise from the name, as a brushless DC motor does not directly operate off a DC voltage source. However, the basic principle of operation is similar to a DC motor.

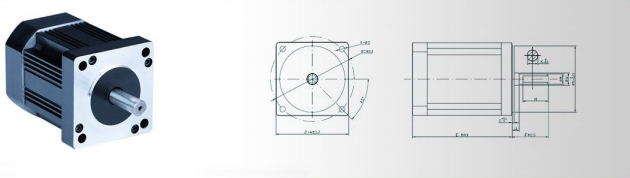

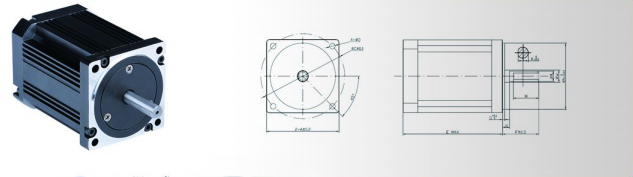

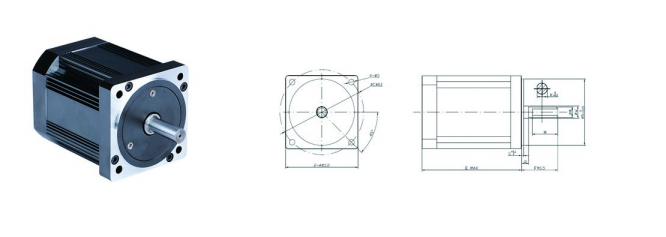

Model	Phase	Voltage(V)	Power Rating(W)	Rated rotor speed(rpm)	Rated torque(N.M)	weight(kg)	Overall dimensions(mm)
LT60BL79-45L223-00	3	24V	45W	2300rpm	0.2N.M	1.5kg	79mm
LT63BLW33-40L220-00	3	24V	40W	2000rpm	0.2N.M	0.31kg	33mm
LT70BL45-90L230-00	3	24V	90W	3000rpm	0.3N.M	0.79kg	45mm
LT70BL99-120L218-00	3	24V	120W	1800rpm	0.6N.M	2.2kg	99mm
LT92BL115-150L212-00	3	24V	150W	1200rpm	1.2N.M	3.375kg	115mm
